Cod : IP-G10-F2458-M

Brand: Interline

Garantie: 24 luni

/ Opinia ta


Comanda prin telefon la 0751.100.107 | Luni - Vineri 10:00 - 18:00

♦ Informatii Livrare

Pentru afisarea metodelor de livrare dsponibile, selecteaza in prealabil judetul si localitatea pentru livrare
-Daca se alege ca modalitate de plata Plata la livrare (Ramburs)– costul transportului este de 30 RON primul kg si se adauga 1 RON/kg pentru fiecare kg suplimentar. Serviciul de RAMBURS este pe CONT COLECTOR, de aceea va rugam sa pastrati chitanta prinita de la FAN COURIER.
- Daca se alege ca modalitate de plata Transfer bancar costul transportului este de 25 RON primul kg si se adauga 1RON/kg pentru fiecare kg suplimentar
Tarifele de procesare comanda si livrare mentionate mai sus, sunt valabile numai in aria de acoperire a curierilor cu care avem incheiate contracte. Daca adresa de livrare este in afara ariei de acoperire, inseamna ca vei fi taxat/-ă pentru km suplimentari (probabil ca esti deja obisnuit/-ă cu asta) si oricum vei fi anuntat/-ă de pretul final in momentul confirmarii comenzii. Comenzile fara o confirmare telefonica prealabila din partea dvs. NU vor fi expediate.

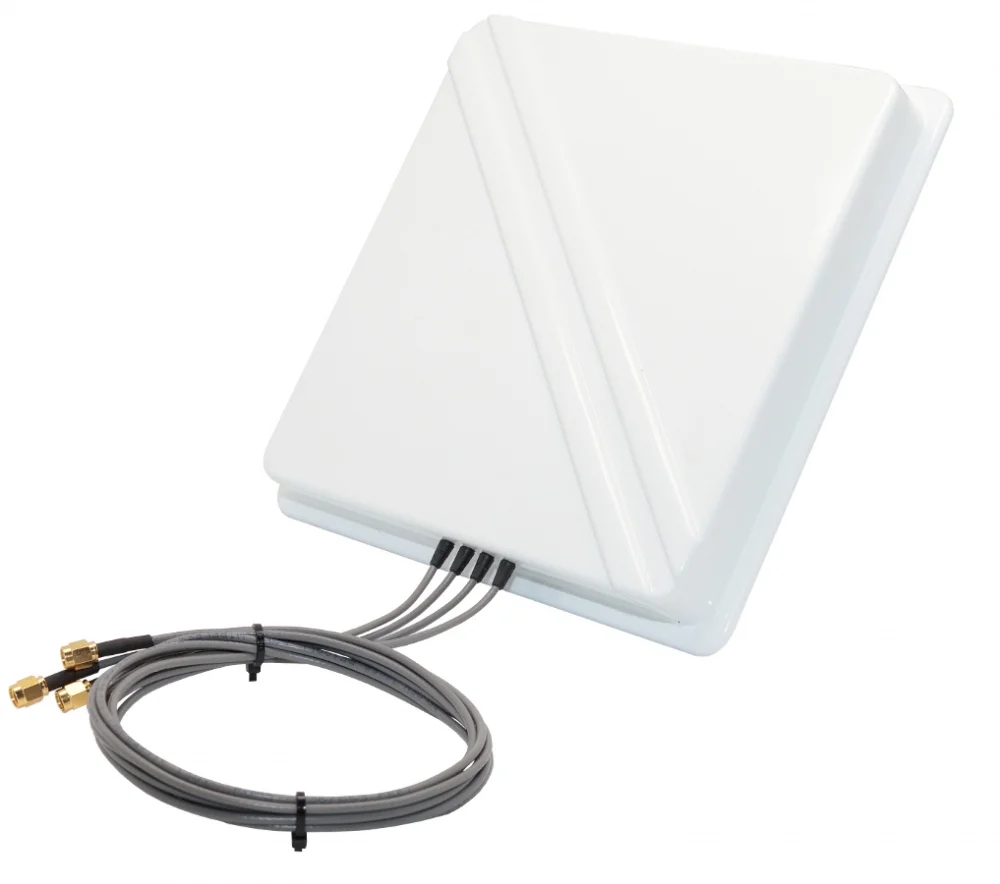

This PANEL antenna is designed for installation in WAVE2 and AC MU-MIMO 4x4 (four independent streams), multiplexing worm-space technologies.

The antenna operates in two frequency bands 2.4 and 5 GHz, offering excellent radio spectrum usage. Specially designed sets of low-capacity heaters guarantee correct operation with a high degree of encoding - 256 QAM, which is used in such systems.

Low capacity does not blur digital signals and helps avoid the appearance of parasitic currents and reflections. It is intended for use in premises, warehouses, production plants.

The housing is made of ABS, which is resistant to impacts, and also resistant to many chemicals (acids, alkalis, salts) that may be found in industrial plants.

The back plate is powder coated and cured at high temperature, which ensures many years of trouble-free operation. CABLE (Belden 7805R) LENGHT 0,9m.

MIMO Antenna Systems


MIMO antenna systems are used to overcome a phenomenon known as multipath distortion or multipath interference.

A diversity antenna system uses two or more identical antennas, located a small distance apart, to provide coverage to the same physical area.


Multipath Distortion


Multipath interference occurs when an RF signal has more than one path between a receiver and a transmitter. This occurs in sites that have a large amount of metallic or other RF reflective surfaces.



Just as light and sound are reflected from objects, just like RF. This means that there may be more than one path that RF adopts when passing from the transmit (TX) antenna and the receiving (RX) antenna. These numerous signals combine in the RX antenna and the receiver, resulting in signal summation, increasing bandwidth and reliability.

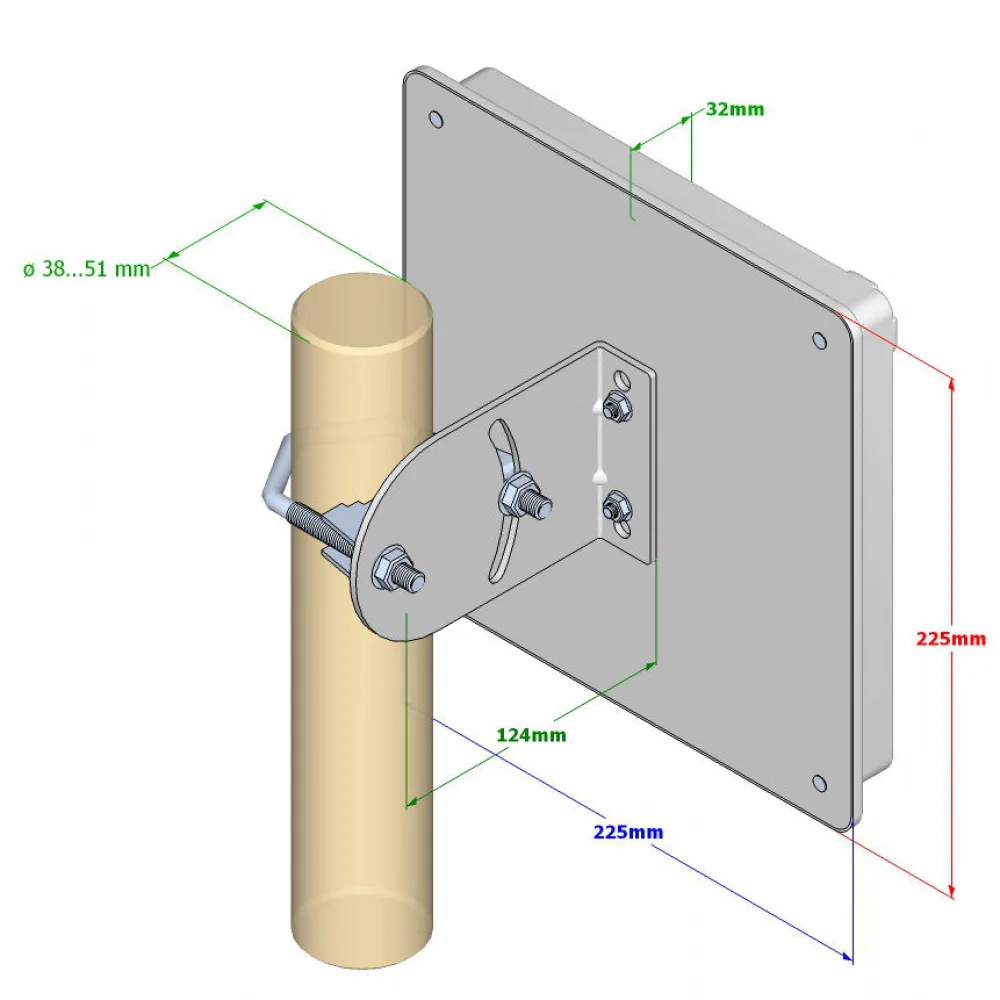

The exact regulation of the antenna ensures proper propagation of radio signals. Proper installation of the mast, antenna and cable ensures stable and correct operation of the antenna installation.


Position the mast or boom with a planer.

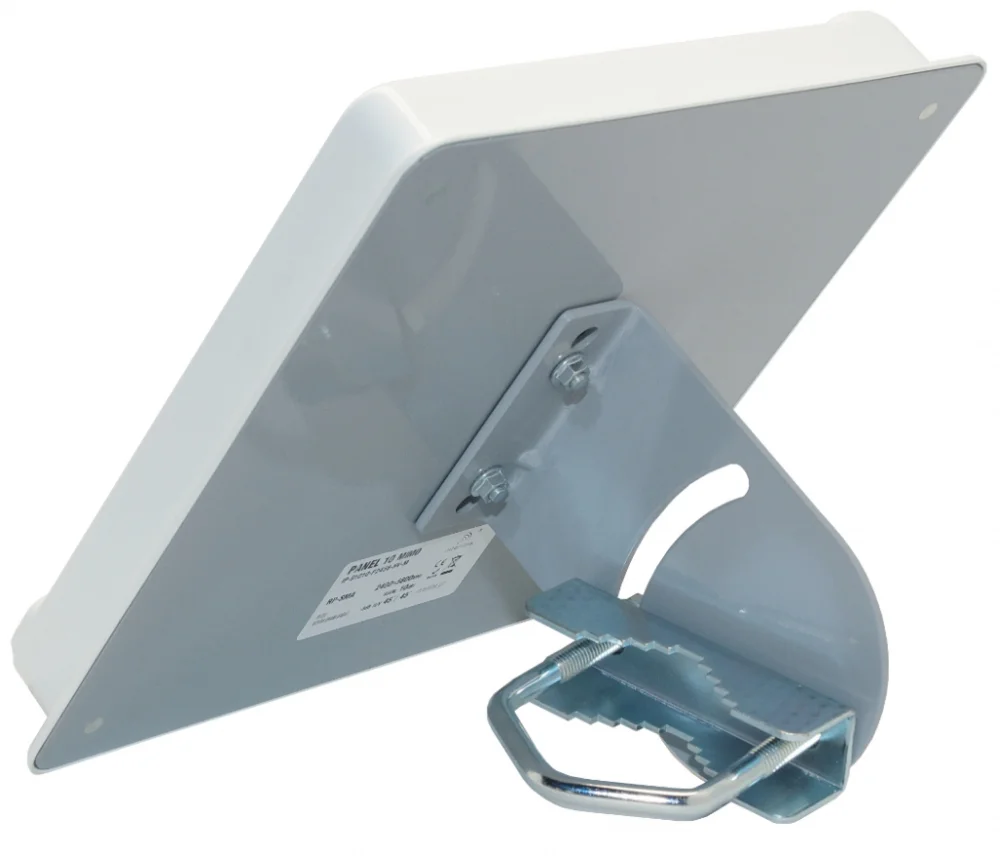

Assemble the antenna bracket as shown in the picture.

Finally, tighten the fixing screws.

Connect the cable and insulate the antenna connector.

Attach the cable to the mast or boom.

It is worth noting the link parameters achieved and the date of installation.


The connection sequence does not matter. All 4 radiators are dual 2.4 & 5GHz. Two work in vertical polarization and two in horizontal.


     Key benefits

  1. Solid casing
  2. Powder painted backplate


  1. MIMO
Tip antena

Frecventa (min)
2 400MHz

Frecventa (max)
5 800MHz

Castig (dBi)


50 Ohm


Fără comentarii pentru acest produs
