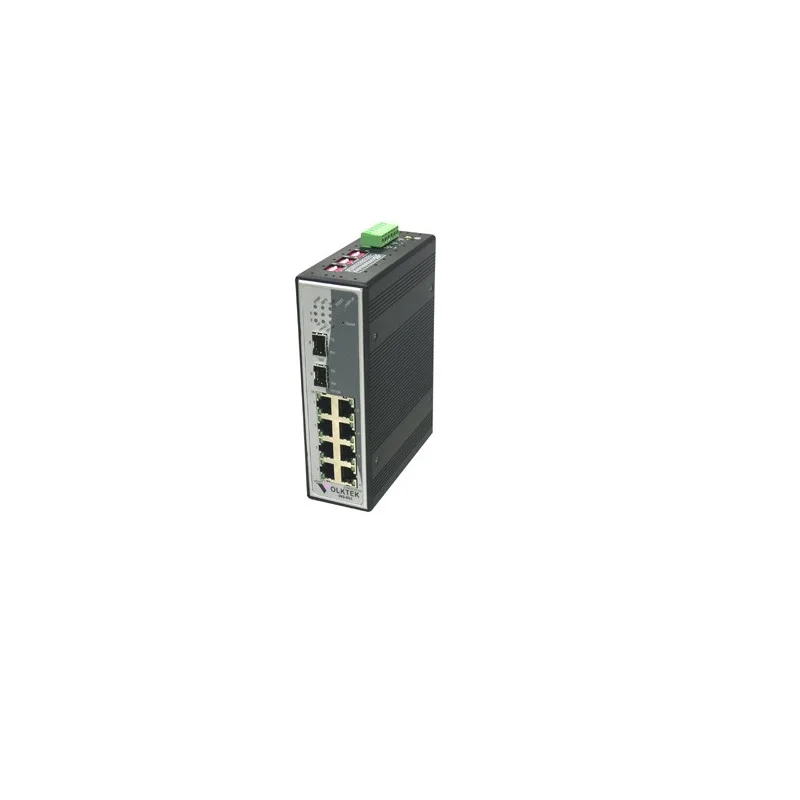

VOLKTEK INS-803A : Industrial 7-port 10/100TX + 2-slot 100FX (SFP) Layer 2 Managed Switch

Cod : INS-803A

/ Opinia ta


Comanda prin telefon la 0751.100.107 | Luni - Vineri 10:00 - 18:00

♦ Informatii Livrare

Pentru afisarea metodelor de livrare dsponibile, selecteaza in prealabil judetul si localitatea pentru livrare
-Daca se alege ca modalitate de plata Plata la livrare (Ramburs)– costul transportului este de 30 RON primul kg si se adauga 1 RON/kg pentru fiecare kg suplimentar. Serviciul de RAMBURS este pe CONT COLECTOR, de aceea va rugam sa pastrati chitanta prinita de la FAN COURIER.
- Daca se alege ca modalitate de plata Transfer bancar costul transportului este de 25 RON primul kg si se adauga 1RON/kg pentru fiecare kg suplimentar
Tarifele de procesare comanda si livrare mentionate mai sus, sunt valabile numai in aria de acoperire a curierilor cu care avem incheiate contracte. Daca adresa de livrare este in afara ariei de acoperire, inseamna ca vei fi taxat/-ă pentru km suplimentari (probabil ca esti deja obisnuit/-ă cu asta) si oricum vei fi anuntat/-ă de pretul final in momentul confirmarii comenzii. Comenzile fara o confirmare telefonica prealabila din partea dvs. NU vor fi expediate.
This device integrates 100Mbps Fast Ethernet (copper and fiber), 10Mbps Ethernet and serial network capabilities in a highly flexible package. VOLKTEK's INS-803A Industrial Managed Switch has seven 10/100Base-TX ports with optional dual 100Base-FX ports in SFP slots delivered in a rugged, hardened case. It has components that are able to withstand a high degree of vibration and shock _ and temperatures as high as 70°C. Not an ordinary office switch, the INS-803A Switch is engineered and designed especially for harsh, industrial-type applications. With it's hardened case, redundant DC power inputs, fiber optic uplinks, and high-performance components, the INS-803A is perfectly suited for your industrial automation environment.

Boasting full management capability through Web and SNMP, the INS-803A becomes an ideal solution for industrial network applications that require managed devices coupled with hassle-free deployment and setup. The INS-803A's Xpress Ring offers very fast recovery time of less than 50ms in case of any node failure. New to the INS-803A is a faster chipset and the Cable Tester function to enable operators to quickly identify problematic cables.

Seven (7) 10/100Base-TX ports, Two (2) 100Base-FX (SFP type fiber transceivers) slots and One (1) Console port (RJ-45)
Rugged, hardened IP30 Case
Vibration/Shock operational
Power terminal block
DIP switches to enable or disable alarm functions
Under and over-power detection function
Wide voltage range (9~48V)
SNMP management application software (HP Open View and IBM/Tivoli NetView capable)
Http/Web browser user interface, CLI and Menu-driven user interfaces via both console and telnet
Xpress Ring (redundant ring) with less than 50ms recovery time
Auto-negotiation NWay on RJ-45 port

Remote & local management
Extends fiber distances up to 2km (6600 feet) for multi-mode and up to 120km (396000 feet) for long-haul single-mode fiber
Status LEDs for quick and easy network activity monitoring
Firmware upgradeable
Console Port (RJ-45) -- use this port for out-of-band devicemanagement. Configure the device through a Terminal Emulator/TELNET Program
RJ-45 Ethernet port supports Auto MDI/MDI-X. Fiber port connectsvarious fiber-optic cables (multi-mode, single mode, long-haul singlemode)
FCC Class A & CE approved


IEEE 802.3 (10BASE-T Ethernet)
IEEE 802.3u (100BASE-TX/FX Fast Ethernet)
IEEE 802.3x
2 x SFP
7 x RJ-45 (10/100)
1 x RJ-45 (Console Port)

Out-band via Console Port (RJ-45)
In-band via RJ-45 and fiber ports
Cable Types: UTP: (Cat 5/5e.)

Multi-mode (62.5/125 micron)
Single mode (9/125 micron)

Max. Distances:
UTP: 100 meters (Category 5/5e.)
Fiber: 2,000 meters (multi-mode)
Up to 120,000 meters (single mode)

Data Rates:
Ethernet - 10Mbps (half-duplex); 10Mbps (full duplex)
Fast Ethernet - 100Mbps (half-duplex); 200Mbps (fullduplex)

Power: Input: 9 ~ 48 V DC
Environment: Operating temperature: -10°C to 70°C
Relative Humidity: 10% to 95%, non-condensing
Temperature: -20°C to 80°C
Relative Humidity: 5% to 95%, non-condensing
Emissions: FCC Part 15 of Class A & CE approved
Dimensions: 120 x 50 x 162mm (D x W x H)
